Source:
http://www.impalassforum.com/vBulletin/showthread.php?p=3275610
By: Low ss

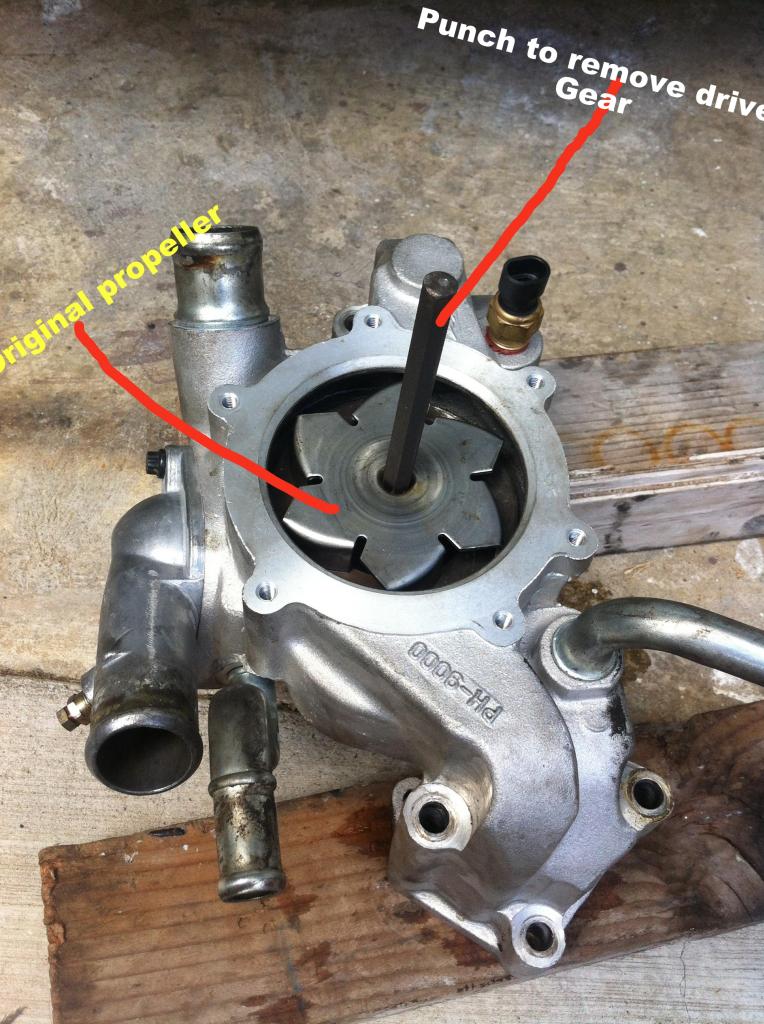

Cover removed.

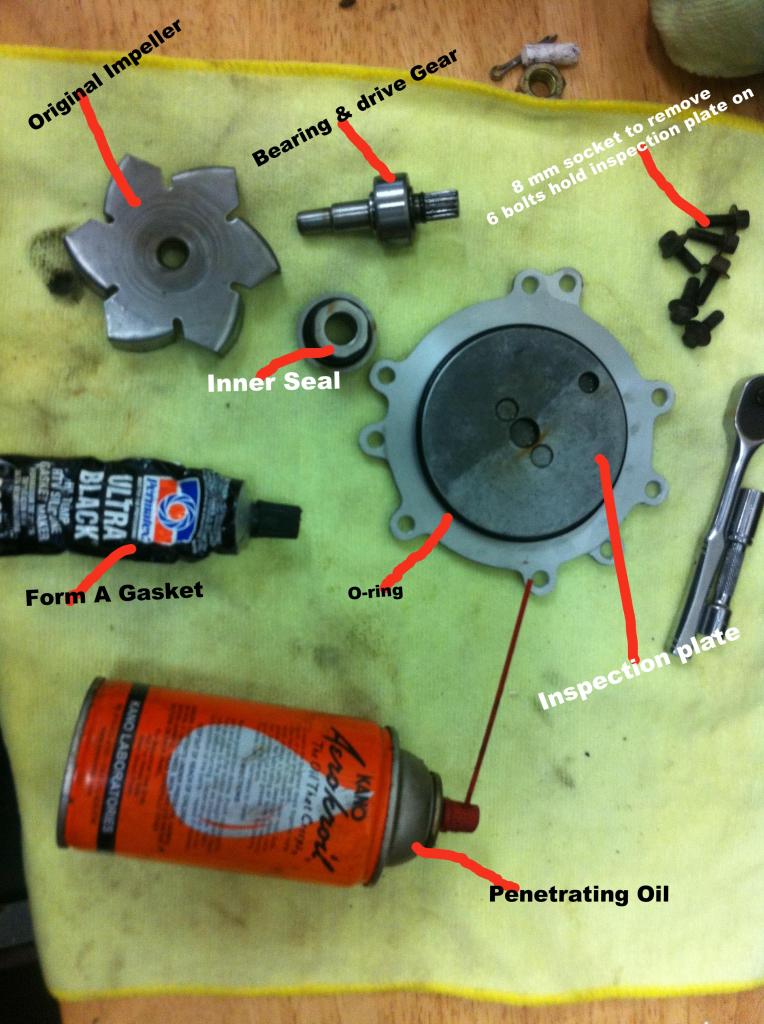

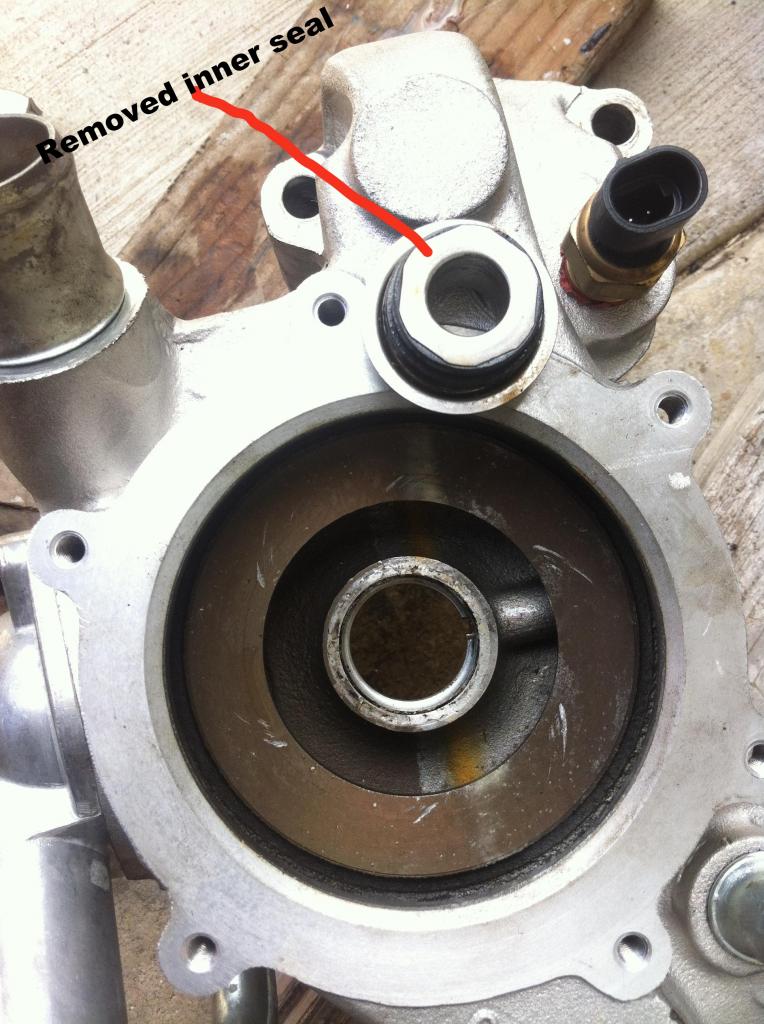

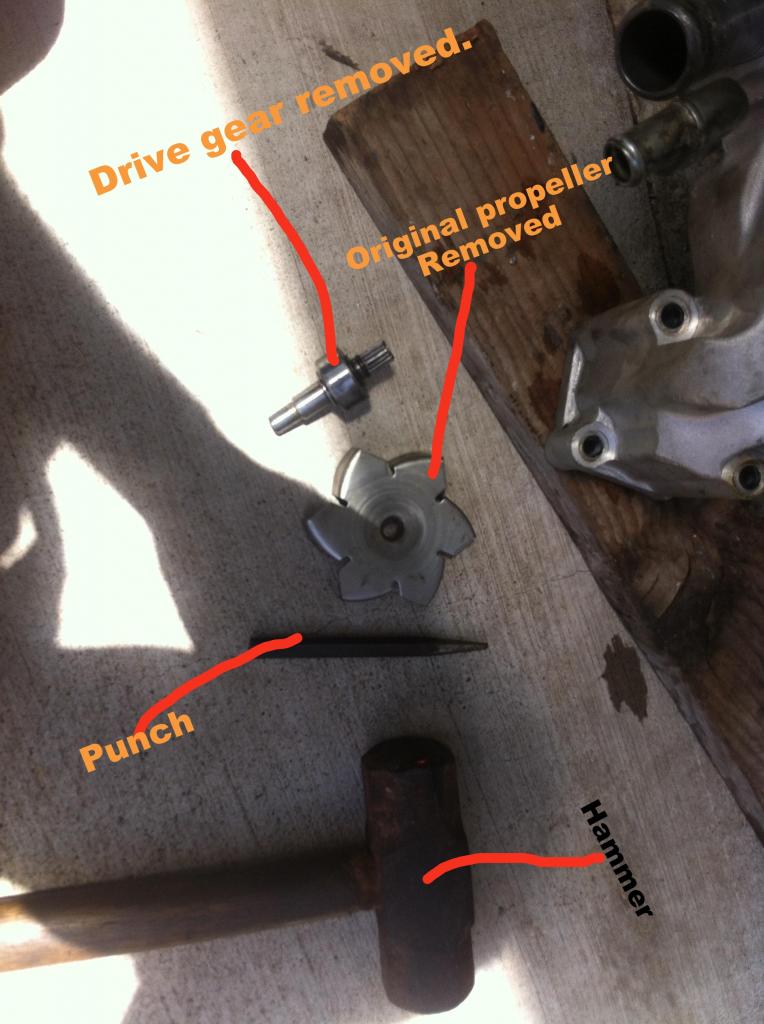

All parts removed.

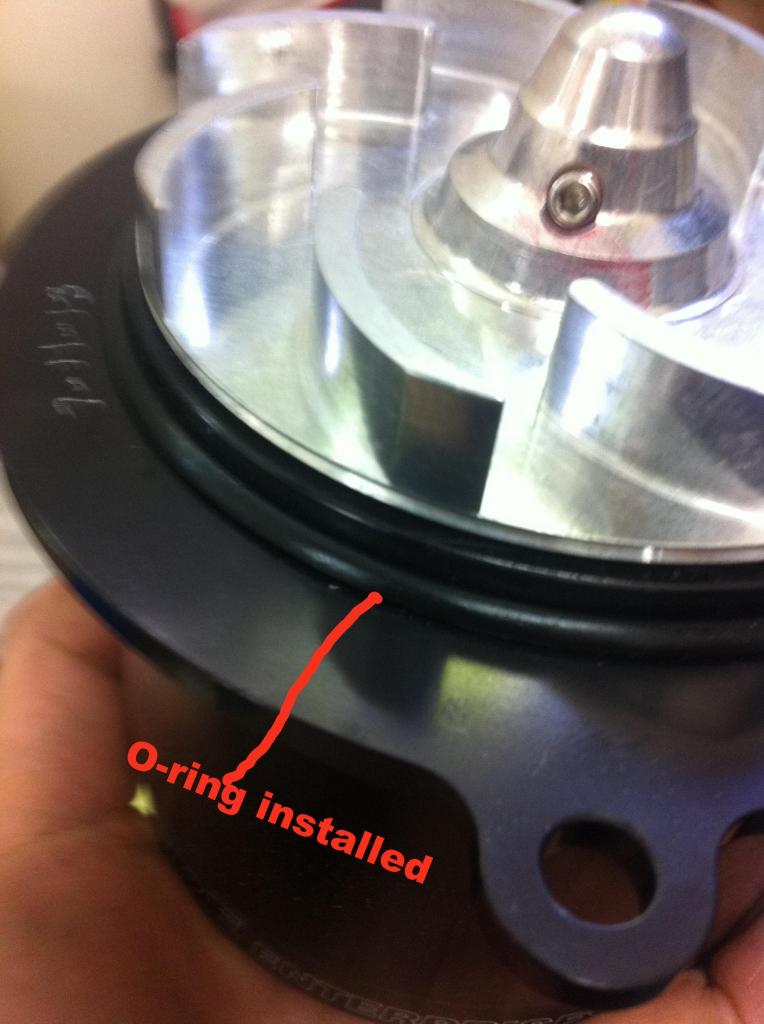

Must buy new o-ring or reuse one from LT1 water pump.

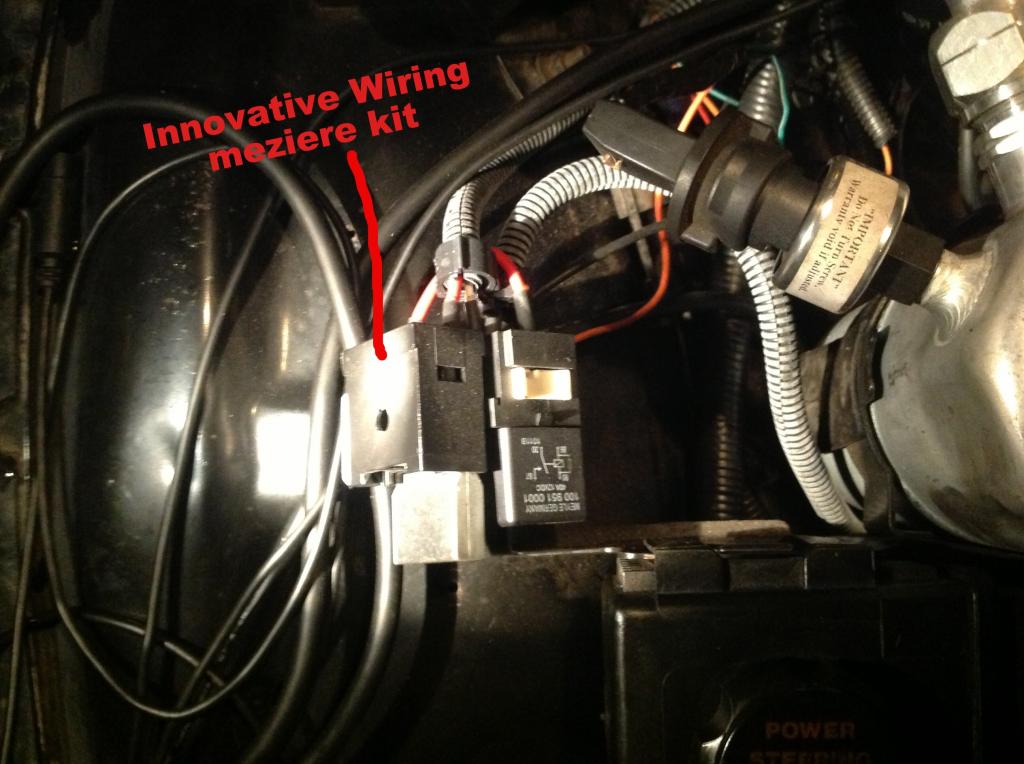

I used the water pump wire kit from innovative wiring, Great kit!
"This is a plug and play harness, no
holes to drill or wires to cut. This harness has a 40amp relay
and a 15 amp auto reset circuit breaker."
I used this kit on my impala. The kit is super easy to install, made
of very high quality parts.
Hope this helps you guys!
O-Ring Information:
What's the diameter
and OD of the O ring? We might be able to locate an alternate from
like Grainger or something.
-Mike
My cheap HF calipers say the pump diameter the "O" ring needs to fit
is 3.565" and the ring is .100" thick (round)
IIRC the O ring does stretch slightly to fit so 3.560" should be fine
Unless dealersship does not have anymore, the ring was a few $ IIRC
3 - 9/16" overall diameter; one hundred thousandths thick.
Roger.
http://www.oringwarehouse.com/files/...-sizechart.pdf
Dash 153 by my observation. Cost is $0.24 for two in the 70 durometer
nitrile.
http://www.oringwarehouse.com/
-Mike |
